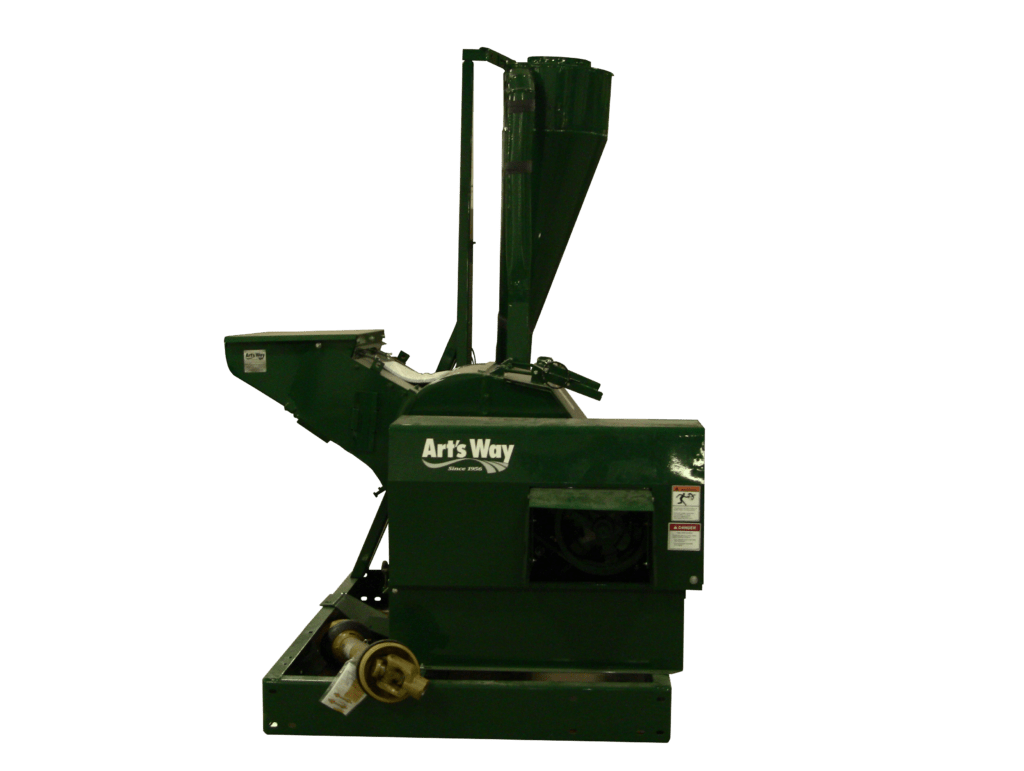

Stationary Hammer Mill

  • 26 inch hammer mill
  • Electric or PTO Drive
  • Stable Auger out base

$18,467.00

Additional information

Capacity of Mixing Tank

N/A

Width of Mill

26 in.

Height (with tire size)

106 in.

Overall Length

83 in.

Width with Auger Feeder

68 in.

Weight with Auger Feeder

1,350 lbs.

Reversible Hammers

96

Screen Area

780 sq. in.

PTO Drive

1000 RPM, Electric

Operating Speed of Mill

2,800-3,000 RPM

Horsepower Requirement

40-60 hp

Auger Feeder Length

N/A

Auger Feeder Diameter

N/A

Auger Feeder Type

N/A

Diameter of Mixing Auger

N/A

Discharge Auger Type (lift & swing)

Mechanical

Discharge Auger Tube Diameter

8 in. in Hopper

Unload Auger Reach 60° Angle

N/A

Unload Auger Reach 3 ft. Extension 60° Angle

N/A

Unload Auger Reach 6 ft. Extension 60° Angle

N/A

Supplement Hopper Size

N/A

Tires

N/A

Ground Clearance

N/A

Compare Models

(Scroll to compare attributes)


Product Info
Art's Way Stationary Hammer Mill

Stationary Hammer Mill

PortableHammerMill

Portable Hammer Mill

6105 Grinder Mixer Hammer Mill

6105 Grinder Mixer

6105 Cattlemax Roller Mill

CATTLEMAXX 6105 Grinder Mixer

Price $18,467.00 $25,597.00 $53,606.00 $63,712.00
Dimensions N/A N/A N/A N/A
Overall Length 83 in. 190 in. 170 in. 170 in.
Horsepower Requirement 40-60 hp - 40-100 hp 40-100 hp
Auger Feeder Diameter N/A 10 in. 10 in. 10 in.
Auger Feeder Length N/A 96 in. 96 in. 96 in.
Auger Feeder Type N/A Hydraulic Trough Hydraulic Trough Hydraulic Tube
Capacity of Mixing Tank N/A N/A 105 bushel (130.7 cu. ft.) 105 bushel (130.7 cu. ft.)
Diameter of Mixing Auger N/A N/A 12 in. flighting/13 in. tube/24 in. base 12 in. flighting/13 in. tube/24 in. base
Discharge Auger Tube Diameter 8 in. in Hopper 8 in. 8 in. 8 in.
Discharge Auger Type (lift & swing) Mechanical Mechanical Hydraulic, Mechanical Hydraulic, Mechanical
Ground Clearance N/A 13 in. 10 in. 10 in.
Height (with tire size) 106 in. 154 in. (max) 106 in. 106 in.
Operating Speed of Mill 2,800-3,000 RPM 2,800-3,000 RPM 2,800-3,000 RPM 540 RPM
PTO Drive Electric, 1000 RPM 1000 RPM, 540 RPM 540 RPM 540 RPM
Reversible Hammers 96 96 72 N/A
Screen Area 780 sq. in. 780 sq. in. 600 sq. in. N/A
Supplement Hopper Size N/A N/A 21 x 24 in. 21 x 24 in.
Unload Auger Reach 3 ft. Extension 60° Angle N/A N/A 19 ft. 3 in. (10 ft. Tube) 19 ft. 3 in. (10 ft. Tube)
Unload Auger Reach 6 ft. Extension 60° Angle N/A N/A 22 ft. (10 ft. Tube) 22 ft. (10 ft. Tube)
Unload Auger Reach 60° Angle N/A 10 ft. 7 in. (10 ft. Tube) 16 ft. 8 in. (10 ft. Tube) 16 ft. 8 in. (10 ft. Tube)
Weight with Auger Feeder 1,350 lbs. 1,600 lbs. 3,540 lbs. 3,540 lbs.
Width of Mill 26 in. 26 in. 20 in. 20 in.
Width with Auger Feeder 68 in. 80 in. 95 in. 95 in.
