Art's Way LAND PLANEs

Using the quick hitch adapter, easily pull the land plane behind your tractor to level out any area for proper soil preparation, improve drainage, and leave behind a smooth site.

ART SAID IT BEST, "WHEN YOU'RE DONE PLAYING IN THE DIRT, IT IS TIME TO GET TO WORK."

CLEAR THE WAY

Dead furrows, back furrows, and implement scars are all erased with the patented Art’s Way floating hitch design. An Art’s Way leveled field makes efficient use of expensive water. Water will run to the end of every row – each plant receives its share. There are no low spots to drown out or high spots to burn out. Art’s Way land planes are designed for high speeds to save you time, labor and money by eliminating extra passes.

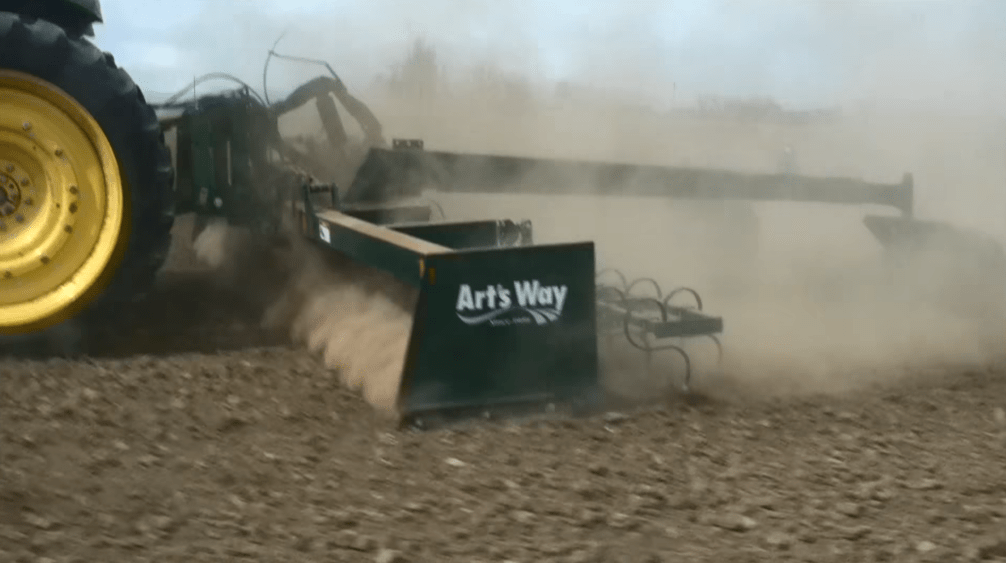

Art's Way V3000 Land Plane

CONTROL EROSION

Land Planes are the only way to insure even distribution of rainfall or irrigation. Water pockets can be eliminated by utilizing the natural slope of the field. On rolling ground, land smoothing improves surface drainage thereby controlling erosion. Tile drainage will handle sub-surface moisture, but a smooth field is necessary to remove excess surface water before damage occurs.

PATENTED FLOATING HITCH

The Art’s Way Land Plane with the floating hitch keeps it on grade and levels the ground for maximum control of surface drainage – no furrows or scars here!

WHY IT IS IMPORTANT

Find something in your load that doesn’t belong? It happens. That’s when the reversible apron chain comes in to save the day. The 667XH pintle chain is used to carry full tube slats across the floor for optimal tensile strength. If that isn’t enough, it is backed by our limited-lifetime warranty.

BUILD YOUR LAND PLANE

WHICH IS RIGHT FOR YOUR OPERATION?

Compare Land Plane MODEL Specs



Product Info

V2400 Land Plane

Art's Way V3000 Land Plane

V3000 Land Plane

Price $42,750.00 $46,250.00
Dimensions N/A N/A
Hitch Patented Floating Hitch Patented Floating Hitch
Horsepower Requirement 150-180 hp 180-250 hp
Blade Capacity 4 cu. yd. 5 cu. yd.
Blade Depth 22 in. 22 in.
Blade Width 24 ft. 30 ft.
Depth Control Cylinder Diameter 4-1/2 in. 4-1/2 in.
Effective Leveling Length 30-35 in. 30-35 in.
Transport Ground Clearance 12 in. 12 in.
Transport Width 12 ft. 14 ft.
Weight - Main Bundle 3,900 lbs. 5,000 lbs.
Weight - S-Tines 1,000 lbs. 1,500 lbs.
Weight - Tires 250 lbs. – Single Wheels, 475 lbs. – Dual Wheels 250 lbs. – Single Wheels, 475 lbs. – Dual Wheels
S-Tines Optional Optional
