ROBUST CAPACITY
Pick the box size fit for you — 16, 18, 20, or 24-ft. — with corrugated-steel sides ready to take on the acidic environment of forage harvest.

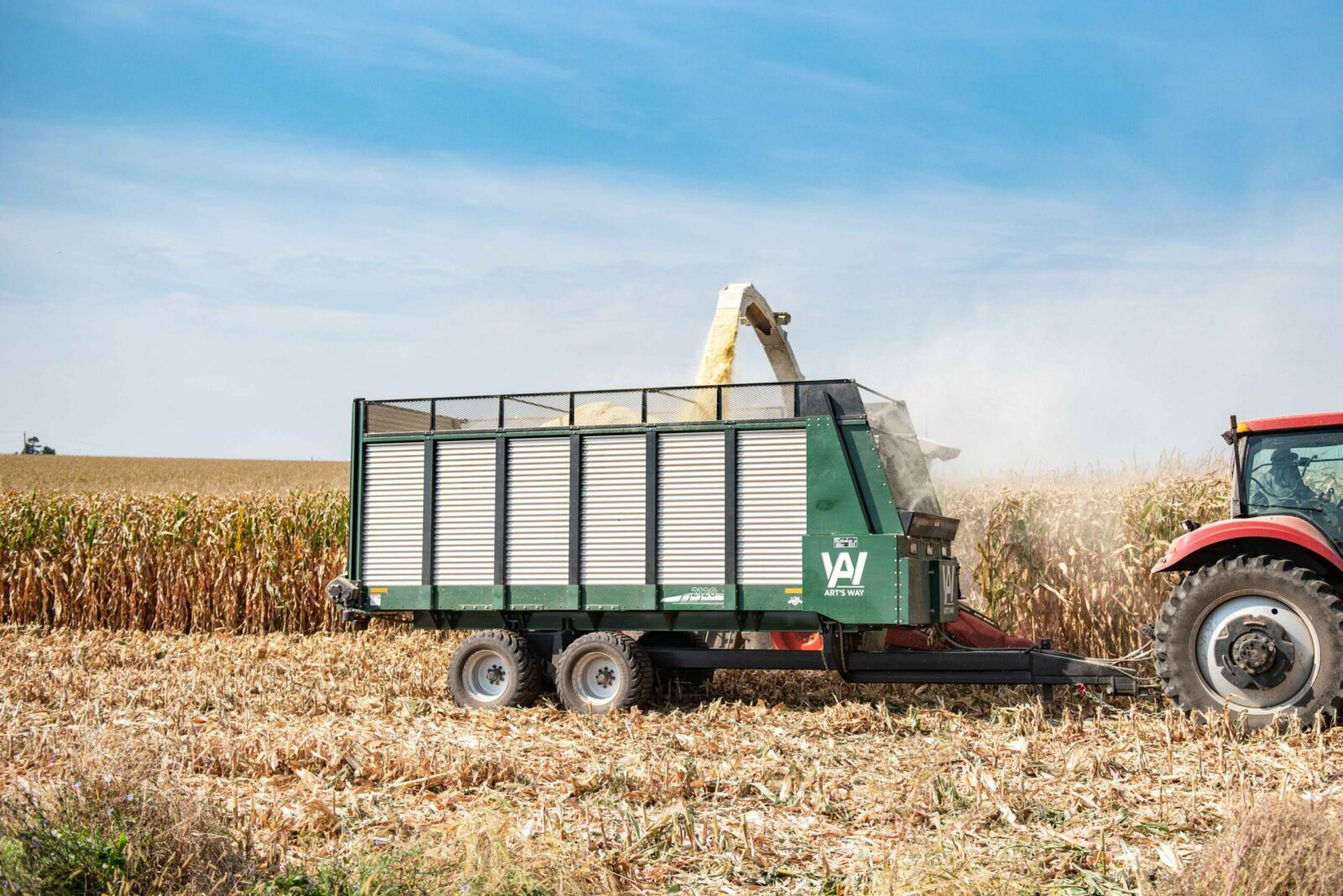

The Art’s Way 2100 Series forage box was built to speed up unload times with a fast, hydraulic drive system which allows you to switch from front unload to rear unload with the push of a button right from the cab. We believe a quality forage box doesn’t have to be loaded with unnecessary bells and whistles to get the job done.
What you need is a low-maintenance forage box with durable components and the ultimate versatility with running gear and truck-mount compatible frame. This simple, serviceable and affordable forage box will keep your cow candy rolling for years to come.
Our independently controlled hydraulic drive system sets us apart from the others in speed and convenience. Our rear- and front-unload options can be done right from the cab with the switch of a button clocking in at 4-minutes and 1-minute to unload respectively.
Pick the box size fit for you — 16, 18, 20, or 24-ft. — with corrugated-steel sides ready to take on the acidic environment of forage harvest.
The standardized frame and sub-frame design means you can potentially mount our forage boxes to anything — be running gear or truck mount.
We’ve drastically reduced the number of unique parts on this machine. These streamlined components translate to a simple, low-maintenance forage box that just about anyone can service.
The box floors are constructed with tough 1/2-in thick densilite material for reduced thermal expansion (no waves and buckles here) and minimal wear. These floors provide a slick surface for material to slide across to reduce trapped moisture buildup.
With the 2100 Series your savings come upfront and throughout the life of ownership. Our engineers drastically streamlined components to create a simple design that equates to reduced maintenance costs and fewer breakdowns for an overall more economical package.
Art’s Way gate delay option is activated with the start of the floor chain and holds the rear end gate open for smooth unload of material. It enables you to have a complete clean out. It swings shut as the floor disengages and you drive forward with a positive lock.
A cart with flotation tires to run along side or behind your harvester in wet field conditions? A forage box with or without a roof for short trips to the storage site? Find the best solution for your operation.
| Product Info |
 24 Foot Forage Box |
 20 Foot Forage Box |
18 Foot Forage Box |
 16 Foot Forage Box |
|---|---|---|---|---|
| Price | $51,318.00 | $43,042.00 | $39,970.00 | $36,678.00 |
| Dimensions | N/A | N/A | N/A | N/A |
| Overall Length | 335-3/4 in. | 23 ft. 11.75 in. | 263-3/4 in. | 239-3/4 in. |
| Apron Chain Link Style | 667X | 667X | 667X | 667X |
| Box Floor Material | 1/2 in. Densilite | 1/2 in. Densilite | 1/2 in. Densilite | 1/2 in. Densilite |
| Box Side Material | 20 gauge Aluminized Steel with 1-5/16 in. corrugation | 20 gauge Aluminized Steel with 1-5/16 in. corrugation | 20 gauge Aluminized Steel with 1-5/16 in. corrugation | 20 gauge Aluminized Steel with 1-5/16 in. corrugation |
| 4th Beater/Side Extensions | Optional | Optional | Optional | Optional |
| Apron Chain Speed | 20 ft./minute variable | 20 ft./minute variable | 20 ft./minute variable | 20 ft./minute variable |
| Apron Chain Tensioning | Serpentine Tensioning | Serpentine Tensioning | Serpentine Tensioning | Serpentine Tensioning |
| Capacity w/ roof (Front/Combo Unload) | 1,385 cu. ft. | 1150 cu. ft. | 1,034 cu. ft. | 917 cu. ft. |
| Capacity w/ roof (Rear Unload) | - | 1,208 cu. ft. | 1,092 cu. ft. | 974 cu. ft. |
| Cross Conveyor Chain | CA550 | CA550 | CA550 | CA550 |
| Empty Weight (w/ extensions) | - | 7,800 lbs. | 7,100 lbs. | 6,600 lbs. |
| Empty Weight (w/o extensions) | - | 7,300 lbs. | 6,600 lbs. | 6,100 lbs. |
| Floor Length | 24 ft. | 20 ft. | 18 ft. | 16 ft. |
| Floor Supports | 2 in. x 2 in. on 18-7/8 in. Centers with 3 in. Support Strips | 2 in. x 2 in. on 18-7/8 in. Centers with 3 in. Support Strips | 2 in. x 2 in. on 21-1/8 in. centers with 3 in. Support Strips | 2 in. x 2 in. on 25-11/16 in. centers with 3 in. Support Strips |
| Front Drive Shaft | 2 in. | 2 in. | 2 in. | 2 in. |
| Heaped Capacity (w/ extensions) (Rear Unload) | - | 1,289 cu. ft. | 1,164 cu. ft. | 1,038 cu. ft. |
| Heaped Capacity (w/o extensions) (Front/Combo Unload) | 1,254 cu. ft. | 1,042 cu. ft. | 937 cu. ft. | 831 cu. ft. |
| Heaped Capacity (w/o extensions) (Rear Unload) | - | 1,093 cu. ft. | 987 cu. ft. | 881 cu. ft. |
| Heaped Capacity (w/ extensions) (Front/Combo Unload) | 1,476 cu. ft. | 1,226 cu. ft. | 1,101 cu. ft. | 975 cu. ft. |
| In-Cab Control Hydraulic Drive | Screen w/ push button | Screen w/ push button | Screen w/ push button | Screen w/ push button |
| Inside Height (w/ extensions) | 89-5/8 in. | 89-5/8 in. | 89-5/8 in. | 89-5/8 in. |
| Inside Height (w/o extensions) | 73-5/8 in. | 73-5/8 in. | 73-5/8 in. | 73-5/8 in. |
| Inside Width | 87-5/16 in. | 87-5/16 in. | 87-5/16 in. | 87-5/16 in. |
| Manual Hydraulic Drive | Optional | Optional | Optional | Optional |
| Outfeed | 30 in. Std. Hydraulic lift Std. | 30 in. Std. Hydraulic lift Std. | 30 in. Std. Hydraulic lift Std. | 30 in. Std. Hydraulic lift Std. |
| Overall Height (w/ extensions) | 110-5/8 in. | 110-5/8 in. | 110-5/8 in. | 110-5/8 in. |
| Overall Height (w/o extensions) | 110-5/8 in. | 110-5/8 in. | 110-5/8 in. | 110-5/8 in. |
| Overall Height w/ roof | 117.5 in. | 117.5 in. | 117.5 in. | 117.5 in. |
| Overall Width w/ Conveyor up | - | 112.25 in. | - | - |
| Rear Gate Delay | Optional | Optional | Optional | Optional |
| Roof | Optional | Optional | Optional | Optional |
| Side Stakes | 2 in. x 5 in. on 37-11/16 in. Centers | 2 in. x 5 in. on 37-11/16 in. Centers | 2 in. x 5 in. on 42-1/4 in. centers | 2 in. x 5 in. on 51-3/8 in. centers |
| Struck Capacity (w/ extensions) (Rear Unload) | - | 1127 cu. ft. | 1,019 cu. ft. | 910 cu. ft. |
| Struck Capacity (w/o extensions) (Front/Combo Unload) | 1,068 cu. ft. | 889 cu. ft. | 800 cu. ft. | 711 cu. ft. |
| Struck Capacity (w/o extensions) (Rear Unload) | - | 927 cu. ft. | 838 cu. ft. | 749 cu. ft. |
| Struck Capacity (w/ extensions) (Front/Combo Unload) | 1,293 cu. ft. | 1076 cu. ft. | 967 cu. ft. | 858 cu. ft. |
| Tires (Base) | 22.5×13 – 10 Bolt Rim w/425/65R22.5 Used Truck Tire-Requires 4 each | 16.1×14 – 8 Bolt Rim w/ 16.5Lx16.1 – 12 Ply Tire | 16.1×11 – 8 Bolt Rim w/ 14Lx16.1 – 12 Ply Tire | 15×10 -8 Bolt Rim w/12.5Lx15 – 12 Ply Tire |
| Tires (Float) | 400 Flotation – Set of 4 | 560/45R22.5 Flotation – 8 Bolt Wheel | 400/55R22.5 Flotation Tire – Set of 4 | 22.5×13 – 8 Bolt Rim w/425/65R22.5 Used Truck Tire |
| Tires (Optional #3) | 560/45R22.5 Flotation Tire-Requires 4 each | - | - | - |
| Top Rail | Formed metal reinforced with tubing | Formed metal reinforced with tubing | Formed metal reinforced with tubing | Formed metal reinforced with tubing |
