The X Series manure spreaders have a range of box sizes from 350 cubic feet to 900 cubic feet heaped capacity to meet the needs of a variety of operations. This time-tested manure spreader has seen some serious upgrades to give you the edge when it matters most including an upgraded floor chain with a limited life-time warranty, guillotine slop gate and flared sides. Capture the benefits of applying livestock manure on your field and help complete the lifecycle on your operation.
Our manure spreaders are the best at what they do. Spread material evenly and quickly where you want it. Varying sizes let you choose the right piece of equipment for your job without going over budget.
Searching for better built manure spreaders for those heaps of gold? Capture the benefits of applying livestock manure on your fields with Art’s Way X Series manure spreaders. The X Series offers time-tested designs with serious upgrades — that means an upgraded floor chain with a limited-lifetime warranty, a guillotine slop gate and flared sides.

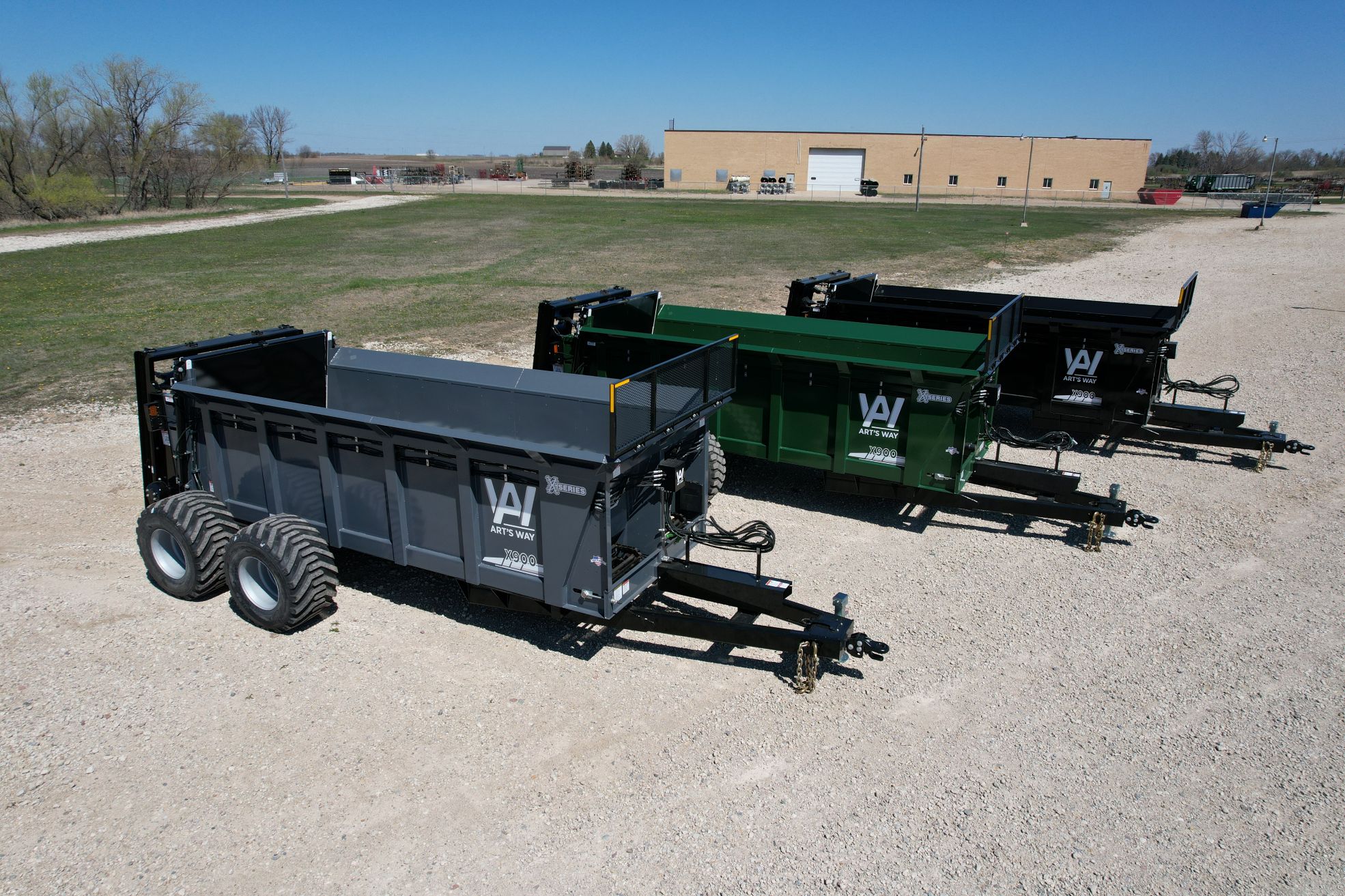

Your perfect size manure spreader is waiting for you. Our boxes range from 350 to 900 cubic feet heaped capacity to meet a variety of operation needs.

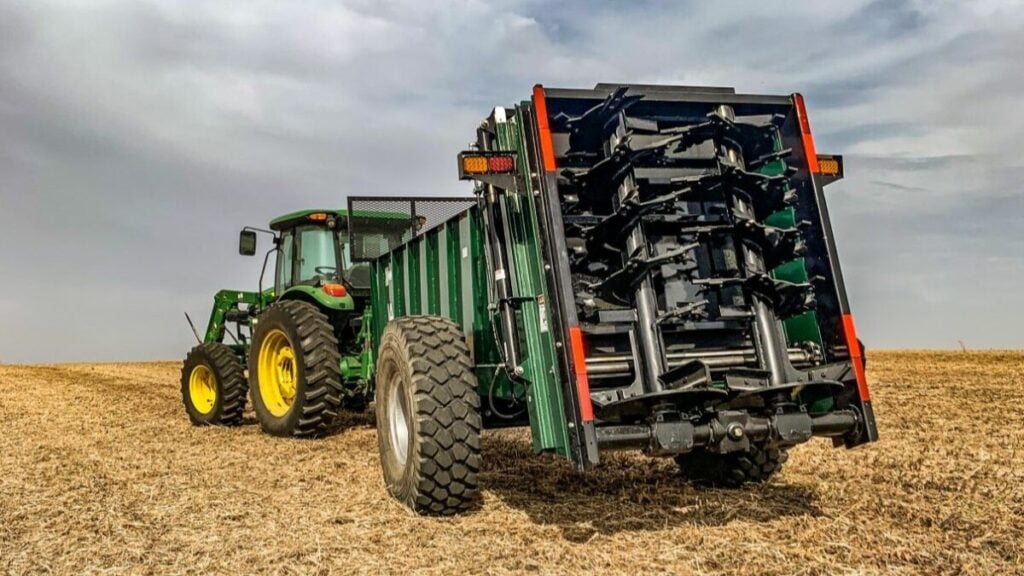

Clumps and dead spots? Not with this spreader. The X Series manure spreaders have a unique vertical beater placement combined with guillotine slop gate controls to ensure material entering the beaters is sent out in an even spread with a consistent size (2 inches or less).
Flared sides on the X550, X700 and X900 provide a base for your bucket and a lower loading height for extra capacity compared to a spreader with straight sides. The vertical beaters are also removable so you can haul forage, silage, snow, compost and hay. Can’t beat that.
Find something in your load that doesn’t belong? It happens. That’s when the reversible apron chain comes in to save the day. The 88C open barrel pintle chain is used to carry full tube slats across the floor for optimal tensile strength. If that isn’t enough, it is backed by our limited-lifetime warranty.
Heavy duty apron chain carries material to the beaters. Operator controls how fast the material feeds. Different sized units depending on your operation. Varying height gates to control feed.

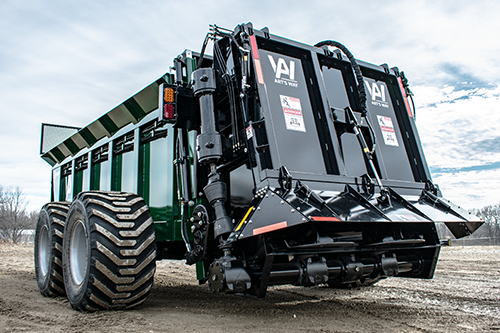

We’re bringing you the durability, versatility, & effiency you need for your poultry operation. This X900 litter unit features a two-way hydraulic back door. Easily open the full door for maintenance & cleaning access or adjust the bottom door to better control your spread distance.

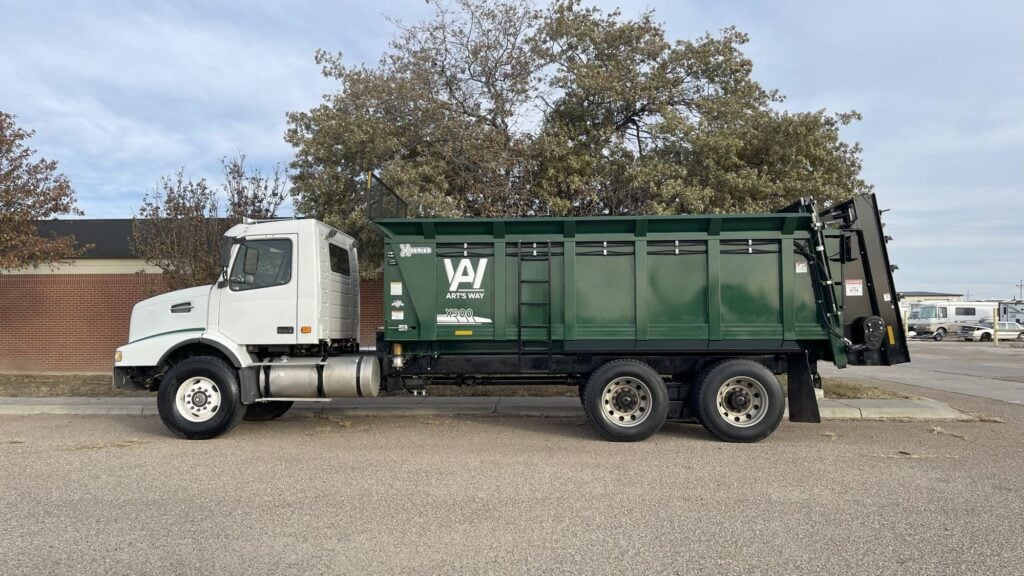

We’re offering you the right options for your operation. Do you prefer a truck mount? Is this how your operation just works? Our truck mount shares the same great features of the X900. Spread just as far & wide with even coverage.
Spreading manure in your field with a tractor? Choose the right Art’s Way spreader for your operation.
| Price | $51,386.00 | $69,172.00 | $86,204.00 | $98,504.00 | $117,205.00 | |
|---|---|---|---|---|---|---|
| Dimensions | N/A | N/A | N/A | N/A | N/A | |
| Overall Height (float/std tire) | 8 ft. 3 in./8 ft. 5 in. | 8 ft. 11 in./9 ft. 1 in. | 116 in. / 118 in. | 118 in./120 in. | 9 ft. 5 in./9 ft. 8 in. | |
| Overall Length | 25 ft. 1 in. | 29 ft. 1 in | 27 ft. 9in. | 30 ft. 11 in. | 32 ft. 2 in. | |
| Apron Chain Link Style | 88C | 88C | 88C | 88C | 88C | |
| Apron Chain Slat Style | Tube | Tube | Tube | Tube | Tube | |
| Axle Configuration | Single, Tandem | Tandem | Tandem | Tandem | Tandem | |
| Beater Make | Berma | Berma | Berma | Berma | Berma | |
| Beater Speed | 420 RPM | 420 RPM | 420 RPM | 420 RPM | 483(PANS) / 426(BEATERS) | |
| Beater Style | Vertical SRT8 | Vertical SRT8 | Vertical SRT8 | Vertical SRT18 | Horizontal SRT18 | |
| Box Floor Material | 1/2 in. Densilite | 1/2 in. Densilite | 3/4 in. Densilite | 3/4 in. Densilite | 3/4 in. Densilite | |
| Box Inner Height | 3 ft. 3.5 in. | 3 ft. 3.5 in. | 4 ft. 3 in. | 4 ft. 8 in. | 4 ft. 8 in. | |
| Box Inner Length | ~14.5 ft. | ~19 ft. | ~18 ft. | ~20 ft. | ~20 ft. | |
| Box Inner Width | 4 ft. 11 in. | 4 ft. 11 in. | 6 ft. | 78 in. | 6 ft. | |
| Box Side Material | 12 Gauge | 12 Gauge | 10 Gauge | 10 Gauge | 10 Gauge | |
| End Gate | Guillotine | Guillotine | Guillotine | Guillotine | Guillotine | |
| Flare | No | Yes | Yes | Yes | Yes | |
| Flare Angle | N/A | 45° | 45° | 45° | 45° | |
| Flare Height | N/A | 8 in. | 11 in. | 8 in. | 8 in. | |
| Flare Type | N/A | Permanent | Permanent | Permanent | Permanent | |
| Gearbox Make | Berma | Berma | Berma | Berma | Berma | |
| Gearbox Style | Single | Single | Dual | Dual | Dual | |
| Heaped Capacity (cu. ft.) | 367 cu. ft. | 551 cu. ft. | 683 cu. ft. | 909 cu ft. | 909 cu ft. | |
| Heaped Manure Weight (Lbs) - Est. 60 Lbs/Cu. Ft. | 22,020 lbs. | 33,060 lbs. | 40,980 lbs. | 54,540 lbs. | 54,540 lbs. | |
| Hitch | 2 in. Swivel | 2 in. Swivel | 2 in. Swivel | 2 in. Swivel | 2 in. Swivel | |
| Horsepower Requirement | 100-125 hp | 125-150 hp | 150-175 hp | 175-200 hp | 175-200 hp | |
| Load Height Float Tire | 6 ft. 4 in. | 7 ft. | 7 ft. 5 in. | 7 ft. 7 in. | 7 ft. 7 in. | |
| Load Height Standard Tire | 6 ft. 2 in. | 6 ft. 10 in. | 7 ft. 8 in. | 7 ft. 10 in. | 7 ft. 10 in. | |
| Overall Empty Weight (lbs.) | 8,020 lbs. | 10,600 lbs. | 12,200 lbs. | 16,800 lbs. | 17,321 | |
| Overall Heaped Weight (lbs.) | 30,040 lbs. | 43,660 lbs. | 53,180 lbs. | 69,290 lbs. | 67,321 | |
| Overall Struck Weight (lbs.) | 22,840 lbs. | 33,640 lbs. | 40,580 lbs. | 52,250 lbs. | 52,250 lbs. | |
| Overall Width | 8 ft. 5 in./9 ft. 10 in. | 9 ft. 10 in./11 ft. 1 in. | 11 ft. 1.5 in. | 11 ft. 5.5 in. | 11 ft. 5.5 in. | |
| PTO | 1-3/4" 1000 RPM, 1-3/8" 1000 RPM, 540 RPM | 1-3/4" 1000 RPM, 1-3/8" 1000 RPM | 1-3/4" 1000 RPM, 1-3/8" 1000 RPM | 1-3/4" 1000 RPM, 1-3/8" 1000 RPM | 1-3/4" 1000 RPM, 1-3/8" 1000 RPM | |
| Reversible Apron Chain | Standard | Standard | Standard | Standard | Standard | |
| Scales | N/A | N/A | Digistar Opt., Raven Opt. | Digistar Opt., Raven Opt. | Digistar Opt., Raven Opt. | |
| Shear Protection | Rear Shear Bolt/Over Running Clutch/Friction Clutch | Rear Shear Bolt/Over Running Clutch/Friction Clutch | Rear Shear Bolt/Over Running Clutch/Friction Clutch | Over Running Clutch/Friction Clutch | Over Running Clutch/Friction Clutch | |
| Estimated Spread Width | 30 ft. | 30 ft. | 30 ft. | 35 ft. | 60 ft. | |
| Struck Capacity (cu. ft.) | 247 cu. ft. | 384 cu. ft. | 473 cu. ft. | 625 cu. ft. | 625 cu. ft. | |
| Struck Manure Weight (Lbs) - Est. 60 Lbs/Cu. Ft. | 14,820 lbs. | 23,040 lbs. | 28,380 lbs. | 37,500 lbs. | 37,500 lbs. | |
| Tongue Weight (Empty) | ~260 lbs. (5% TW) | ~600 lbs. (10% TW) | ~825 lbs. (12% TW) | ~625 lbs. (8% TW) | ~1350 (9%) | |
| Tongue Weight (Heaped) | ~3,200 lbs. (12% TW) | ~7,700 lbs. (20% TW) | ~11,350 lbs. (23% TW) | ~12,975 lbs. (21% TW) | ~10841 (16%) | |
| Variable Apron Speed | Standard | Standard | Standard | Standard | Standard | |
| Shipping Dimensions | 7 ft. 8 in. x 25 ft. 6 in. x 9 ft. 2 in. | 7 ft. 8 in. x 29 ft. 2 in. x 8 ft. 1 in. | 8 ft. 5 in. x 28 ft. x 9 ft. 10 in. | 8 ft. 5 in. x 32 ft. x 9 ft. 10 in. | 8 ft. 5 in. x 32 ft. x 9 ft. 10 in. | |
| Tires (Base) | Single axle 16.00/R-20 used military, tandem axle 425/65R22.5 used truck | 16.00/R-20 used military, 425/65R22.5 used truck | 16.00/R-20 used military | 16.00/R-20 used military | 600/65R 22.5 | |
| Tires (Float) | Single axle 600/65R 22.5, tandem axle 550/45R22.5 Flotation Set of 4 – BKT | 600/65R 22.5 | 600/65R 22.5 | 600/65R 22.5 | 600/65R 22.5 | |
| Shipping Weight | 9,000 lbs | 10,600 lbs. | 12,200 lbs. | 14,750 lbs. | 15,750 lbs. |
